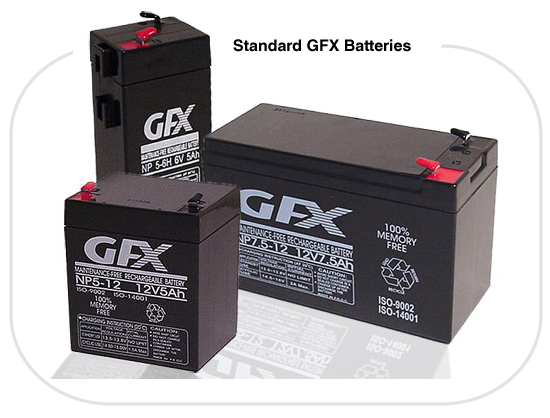

Standard & UXL Series Batteries
|
Model |
Nominal
Voltage |
Nominal
Capacity 20hr rate |
L
inches (mm) |
W
inches (mm) |
H
inches (mm) |
TH
inches (mm) |
Approx.
Weight lbs. |
Qty/
Case |
Terminal
Type |
|
|
|||||||||
|
6v
|
1.2
Ah
|
3.82"
(97)
|
0.96"
(51)
|
2.01"
(51)
|
2.24"
(57)
|
0.7
|
60
|
F
|
|
|
6v
|
2.8
Ah
|
2.60"
(66)
|
1.30"
(33)
|
3.82"
(97)
|
4.06"
(103)
|
1.2
|
40
|
F
|
|
|
6v
|
3.5
Ah
|
5.28"
(134)
|
1.34"
(34)
|
2.36"
(60)
|
2.60"
(66)
|
1.54
|
20
|
F
|
|
|
6v
|
4.5
Ah
|
2.76"
(70)
|
1.77"
(45)
|
3.98"
(101)
|
4.21"
(107)
|
2.1
|
20
|
F
|
|
|
6v
|
5
Ah
|
5.31"135)
|
1.99"
(50.6)
|
3.00"
(76.2)
|
2.95"
(75)
|
2.6
|
12
|
F
|
|
|
6v
|
5
Ah
|
2.28"
(58)
|
1.46"
(37)
|
5.00"
(127)
|
5.28"
(134)
|
1.98
|
20
|
F
|
|
|
6v
|
7.5
Ah
|
5.95"
(151)
|
1.34"
(34)
|
3.70"
(90)
|
3.94"
(100)
|
2.82
|
16
|
F
|
|
|
6v
|
9
Ah
|
3.86"
(98)
|
2.20"
(56)
|
4.65"
(118)
|
4.65"
(118)
|
3.48
|
12
|
F
|
|
|
6v
|
12
Ah
|
5.95"
(151)
|
1.97"
(50)
|
3.70"
(94)
|
3.94"
(100)
|
4.17
|
10
|
F
|
|
|
6v
|
12
Ah
|
4.25"
(108)
|
2.76"
(70)
|
5.52"
(140)
|
5.52"
(140)
|
5.22
|
10
|
S
|
|
|
6v
|
12
Ah
|
4.25"
(108)
|
2.76"
(70)
|
5.52"
(140)
|
5.52"
(140)
|
5.22
|
10
|
H
|
|
|
NP36-6
|
6v
|
36
Ah
|
6.30"
(160)
|
3.40"
(86)
|
6.38"
(162)
|
6.89"
(162)
|
14
|
4
|
B1
|
|
12v
|
1.2
Ah
|
3.82"
(97)
|
1.69"
(43)
|
2.01"
(51)
|
2.24"
(57)
|
1.3
|
30
|
F
|
|
|
12v
|
2
Ah
|
5.90"
(150)
|
0.79"
(20)
|
3.50"
(89)
|
3.50"
(89)
|
1.58
|
20
|
T
|
|
|
12v
|
2.5
Ah
|
6.97"
(177)
|
1.34"
(34)
|
2.36"
(60)
|
2.60"
(66)
|
1.76
|
20
|
F
|
|
|
12v
|
2.8
Ah
|
5.20"
(132)
|
1.30"
(33)
|
3.86"
(98)
|
4.09"
(104)
|
2.4
|
20
|
F
|
|
|
12v
|
3
Ah
|
5.28"
(134)
|
2.64" (67) |
2.40"
(61)
|
2.64"
(67)
|
2.65
|
10
|
F
|
|
|
12v
|
3.1
Ah
|
2.60"
(66)
|
2.60"
(66)
|
3.82"
(97)
|
4.06"
(103)
|
2.8
|
20
|
F&W/
PLUG |
|
|
12v
|
5
Ah
|
3.54"
(90)
|
2.76"
(70)
|
4.02"
(102)
|
4.25"
(108)
|
4.14
|
12
|
F
|
|
|
12v
|
7.5
Ah
|
5.95"
(151)
|
2.56"
(65)
|
3.70"
(94)
|
3.94"
(100)
|
5.19
|
8
|
F
|
|
|
12v
|
12
Ah
|
5.95"
(151)
|
3.90"
(99)
|
3.70"
(94)
|
3.94"
(100)
|
8.60
|
6
|
F
|
|
|
12v
|
18
Ah
|
7.13"
(181)
|
2.99"
(76)
|
6.57"
(167)
|
6.57"
(167)
|
14.32
|
4
|
B1
|
|
|
12v
|
26
Ah
|
6.54"
(166)
|
6.89"
(175)
|
4.92"
(125)
|
4.92"
(125)
|
20.46
|
2
|
B1
|
|
|
12v
|
35
Ah
|
7.70"
(196)
|
5.12"(130)
|
6.10"
(155)
|
7.09"
(180)
|
25.4
|
2
|
B2
|
|
|
12v
|
45
Ah
|
7.76"
(197)
|
6.50"
(165)
|
6.69"
(170)
|
6.69"
(170)
|
35.2
|
1
|
B2
|
|
|
12v
|
85
Ah
|
13.98"
(355)
|
6.54"
(166)
|
6.93"
(176)
|
6.93"
(176)
|
58.4
|
1
|
B3
|
|
|
12v
|
90
Ah
|
11.98"
(304)
|
6.74"
(171)
|
7.87"
(200)
|
9.32"
(236)
|
58.3
|
1
|
B3
|
|
|
12v
|
110
Ah
|
13.07"
(332)
|
6.85"
(174)
|
8.62"
(219)
|
9.33"
(237)
|
68.5
|
1
|
B3
|
|
| NEW | |||||||||
Model |
Nominal Voltage |
Nominal Capacity 20hr rate |
L inches (mm) |
W inches (mm) |
H inches (mm) |
Approx. Weight lbs. |
Terminal Type |
||
| NP1-6 | 6V |
1Ah |
2.0" (51) |
1.65" (42) |
2.0" (51) |
.62 |
F19 | ||
| NP200-6 | 6V |
200Ah |
14.69" (373) |
6.61" (168) |
8.27" (210) |
73.92 |
F23(F11) | ||
| NP55-12 | 12V |
55Ah |
9.01" (229) |
5.43" (138) |
8.23" (209) |
37.89 |
F4 (F3) | ||
| NP0.8-12 | 12V |
0.8Ah |
3.77" (96) |
.98" (25) |
2.44" (62) |
.76 |
WIRE | ||
| NP75-12 | 12 |
75Ah |
10.24" (260) |
6.62" (168) |
8.23" (209) |
23.75 |
F4(F3) | ||
| NP120-12 | 12 |
120Ah |
12.87" (327) |
6.77" (172) |
8.50" (216) |
29.45 |
F10 | ||
| NP150-12 | 12 |
150Ah |
19.09" (485) |
6.69" (170) |
9.49" (241) |
46.9 |
F9(F13) | ||
| NP200-12 | 12 |
200Ah |
20.55" (522) |
9.45" (240) |
8.66" (220) |
68 |
F8(F21) | ||
| UXL TYPE (LONG LIFE) | |||||||||
Model |
Nominal Voltage |
Nominal Capacity 20hr rate |
L inches (mm) |
W inches (mm) |
H inches (mm) |
Approx. Weight lbs. |
Terminal Type |
||
| UXL220-2 | 2 | 200Ah | 6.77" (172) |
4.33" (110) |
12.95" (329) |
35.24 | F2(F6) | ||
| UXL330-2 | 2 | 300Ah | 6.73" (171) |
5.94" (151) |
12.99" (330) |
41.41 | F2(F6) | ||
| UXL400-2 | 2 | 400Ah | 8.30" (211) |
6.77" (172) |
12.80" (325) |
57.27 | F2(F6) | ||
| UXL450-2 | 2 | 450Ah | 8.30" (211) |
6.77" (172) |
13.8" (325) |
59.47 | F2(F6) | ||
| UXL550-2 | 2 | 500Ah | 9.49" (241) |
6.77" (172) |
13.03" (331) |
68.28 | F2(F6) | ||
| UXL600-2 | 2 | 600Ah | 11.85" (301) |
6.85" (174) |
13.03" (331) |
79.29 | F2(F6) | ||
| UXL800-2 | 2 | 800Ah | 16.14" (410) |
6.85" (174) |
12.99" (330) |
110.13 | F2(F6) | ||
| UXL1100-2 | 2 | 1000Ah | 18.74 (476) |
6.85 (174) |
12.91 (328) |
154.19 | F2(F6) | ||
| UXL2000-2 | 2 | 2000Ah | 19.33" (491) |
13.81" (351) |
13.54" (344) |
154 | F2(F6) | ||
| UXL3000-2 | 2 | 3000Ah | 28.03" (712) |
13.90" (353) |
13.43" (341) |
484.58 | F2(F6) | ||
Individual
specification sheets in PDF format are available by clicking the individual
Model Number.
Use
Adobe Reader to view the Spec sheets. Download times may vary as some
sheets are up to 900K.
To print the specification sheet in Adobe Reader, select
"print as image".
