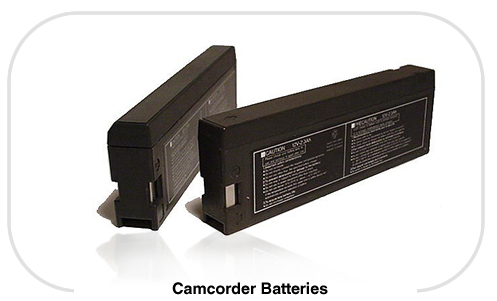

Camcorder Series Batteries

Camcorder Series Batteries

Model
Number

Nominal
Voltage

Nominal
Capacity
20 hr rate

L
in (mm)

W
in (mm)

H
in (mm)

TH
in (mm)

Weight
Approx.
lbs

Terminal
Type

PL1020S	10v	2 Ah	4.72" (120)	2.87" (73)	1.34" (34)	1.34" (34)	1.29	Slide-in
PL1220	12v	2 Ah	5.63" (143)	0.93" (23.7)	2.56" (65)	2.56" (65)	1.38	Pressure
PL1223	12v	2.3 Ah	7.17" (182)	0.93" (23.7)	2.43" (61.7)	2.43" (61.7)	1.71	Pressure
PL1223C	12v	2.3 Ah	7.89" (200)	0.97" (24.8)	2.43" (61.7)	2.43" (61.7)	1.76	Pressure
PLM1223A	12v	2.3 Ah	7.17" (182)	0.93" (23.7)	2.43" (61.7)	2.43" (61.7)	1.81	wire+L
PLM1223C	12v	2.3 Ah	7.17" (182)	0.93" (23.7)	2.43" (61.7)	2.43" (61.7)	1.81	wire+L

Individual specification sheets in PDF format are available by clicking the individual Model Number.
Use Adobe Reader to view the Spec sheets. Download times may vary as some sheets are up to 900K.
To print the specification sheet in Adobe Reader, select "print as image".
